  • Legrand radiant TM870WSLCC10 Paddle Switch with Locator Light, 15 A, 120/277 VAC, WhitePlaceholder
Legrand radiant TM870WSLCC10 Paddle Switch with Locator Light, 15 A, 120/277 VAC, WhitePlaceholder

Legrand

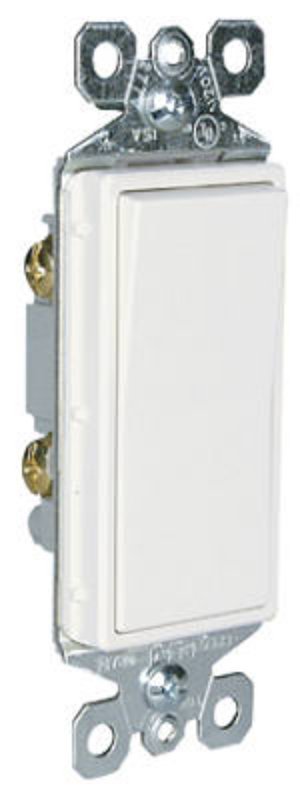

Legrand radiant TM870WSLCC10 Paddle Switch with Locator Light, 15 A, 120/277 VAC, White

$9.99$9.99
  • Legrand radiant TM870WSLCC10 Paddle Switch with Locator Light, 15 A, 120/277 VAC, WhitePlaceholder
Legrand radiant TM870WSLCC10 Paddle Switch with Locator Light, 15 A, 120/277 VAC, WhitePlaceholder
  • Action: Off On
  • Color: White
  • Contact Material: Brass
  • Current Rating: 15 A
  • Dimensions: 4.19 in H x 1.43 in W x 1.27 in D
  • Model #: TM870WSLCC10
  • UPC #: 785007856477
  • SKU: 9875600

Your shopping list will be used for pickup in-store

Key Features

  • Smooth paddle action
  • High impact-resistant thermoplastic construction
  • External screw pressure plate back and side wired and accepts #12 and #14 AWG, push wire #14 AWG
  • Narrow back body leaves more room for wires in the electrical box
  • Extra-long, through body strap eliminates floating installations and imperfect applications
  • Easy access green hex head ground screw
  • Tri-drive ground, terminal and mounting screws
  • This switch is compatible with incandescent loads only and is not recommended for use with LED or CFL lamps
  • Illuminated when off

Item Specifications

ActionOff On
ColorWhite
Contact MaterialBrass
Current Rating15 A
Dimensions4.19 in H x 1.43 in W x 1.27 in D
Housing MaterialThermoplastic
Mounting TypeScrew
Number of Poles1
Temperature Rating30 deg C
Terminal TypePush Wire Side Wire
Voltage Rating120/277 VAC
MORE DETAILS:
  • Application: For residential, multi-dwelling, commercial office and hospitality applications

WARNING: California Residents see Prop 65 Warnings
